Product Description

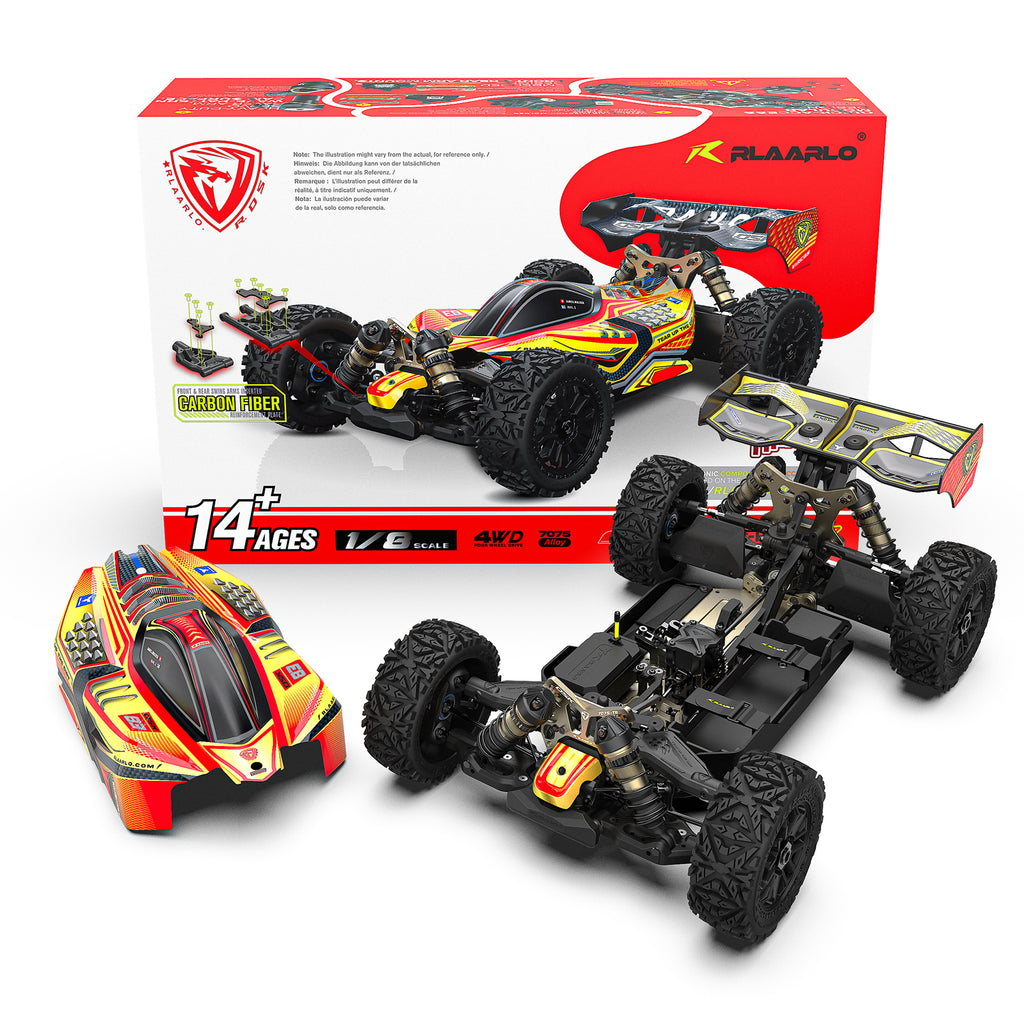

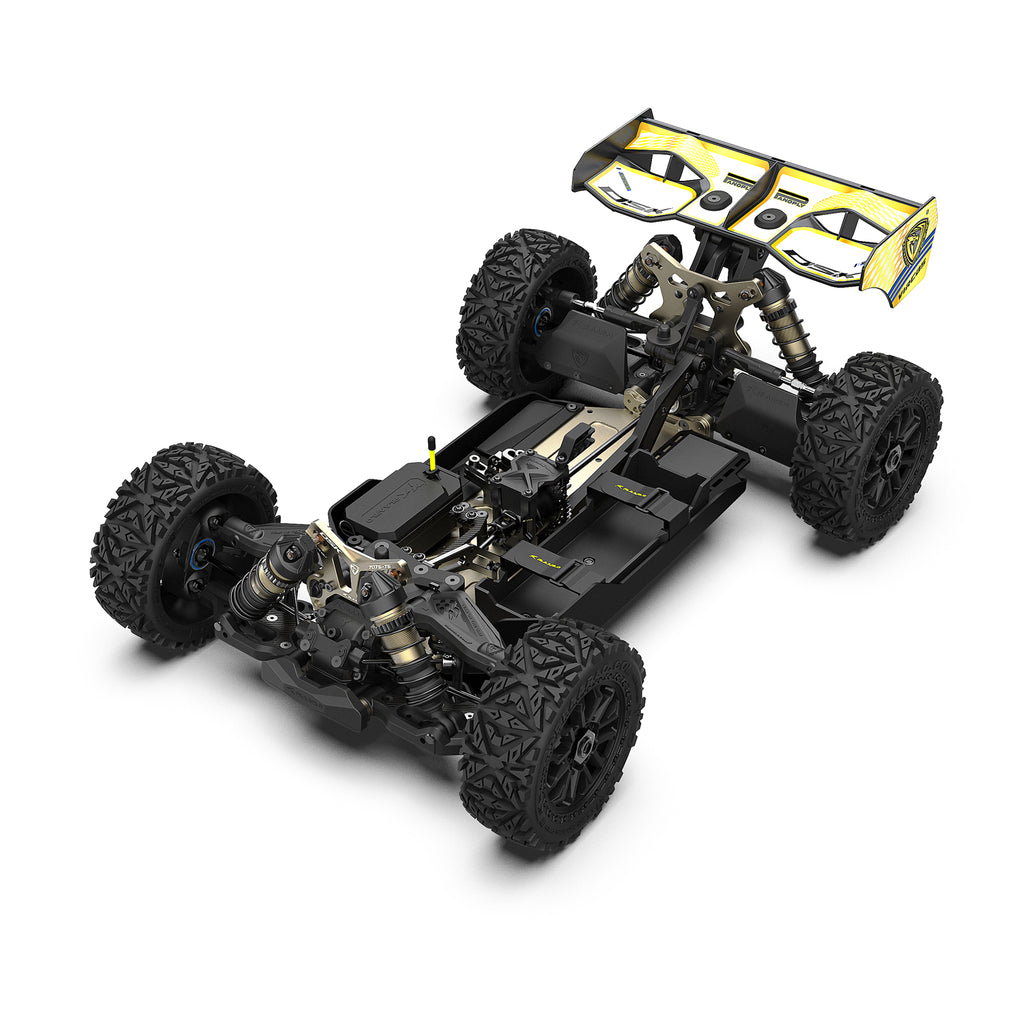

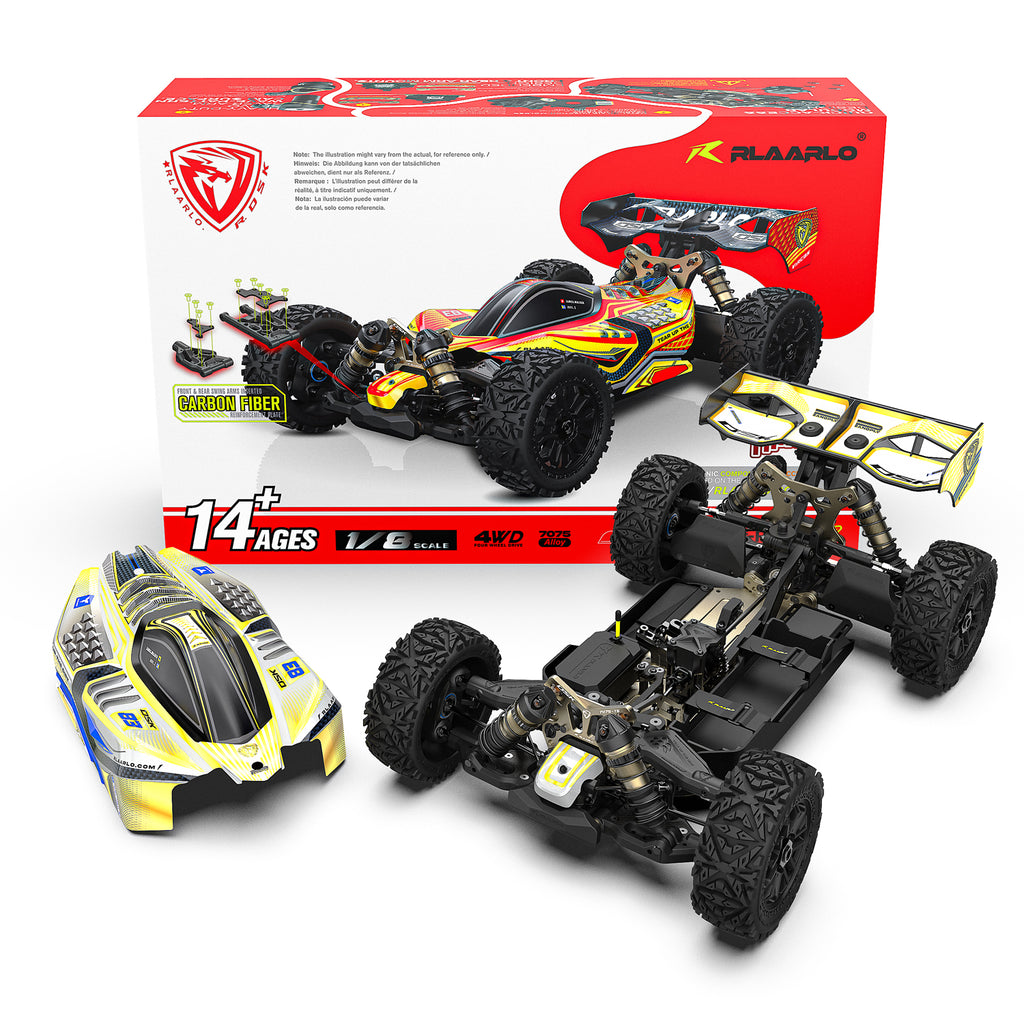

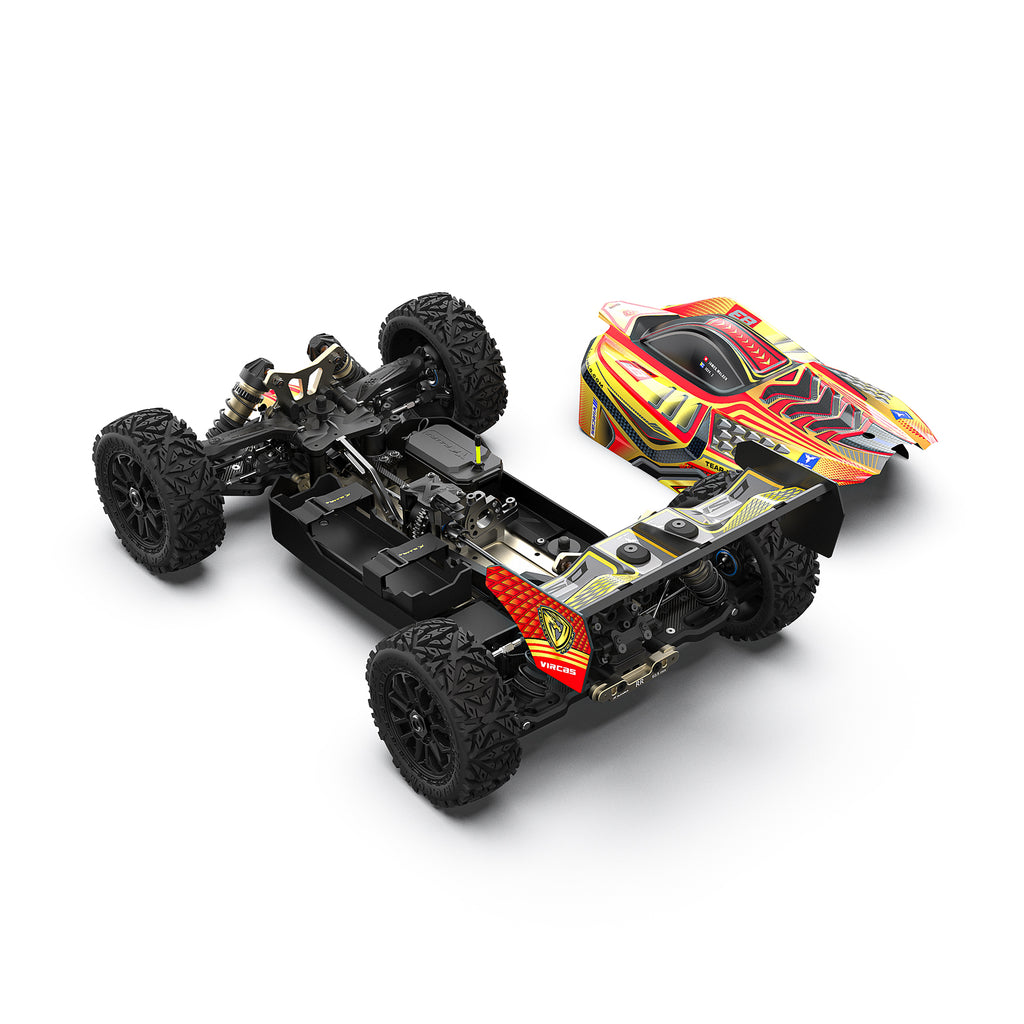

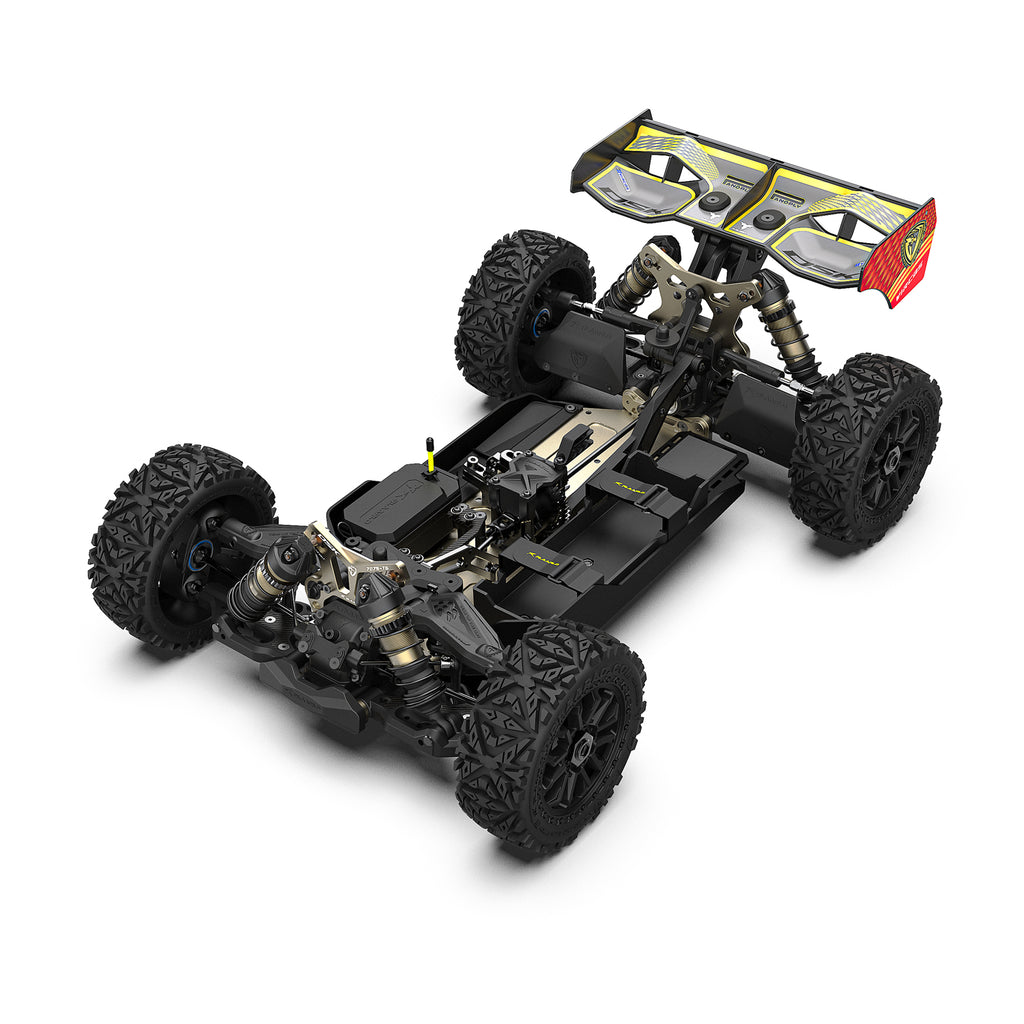

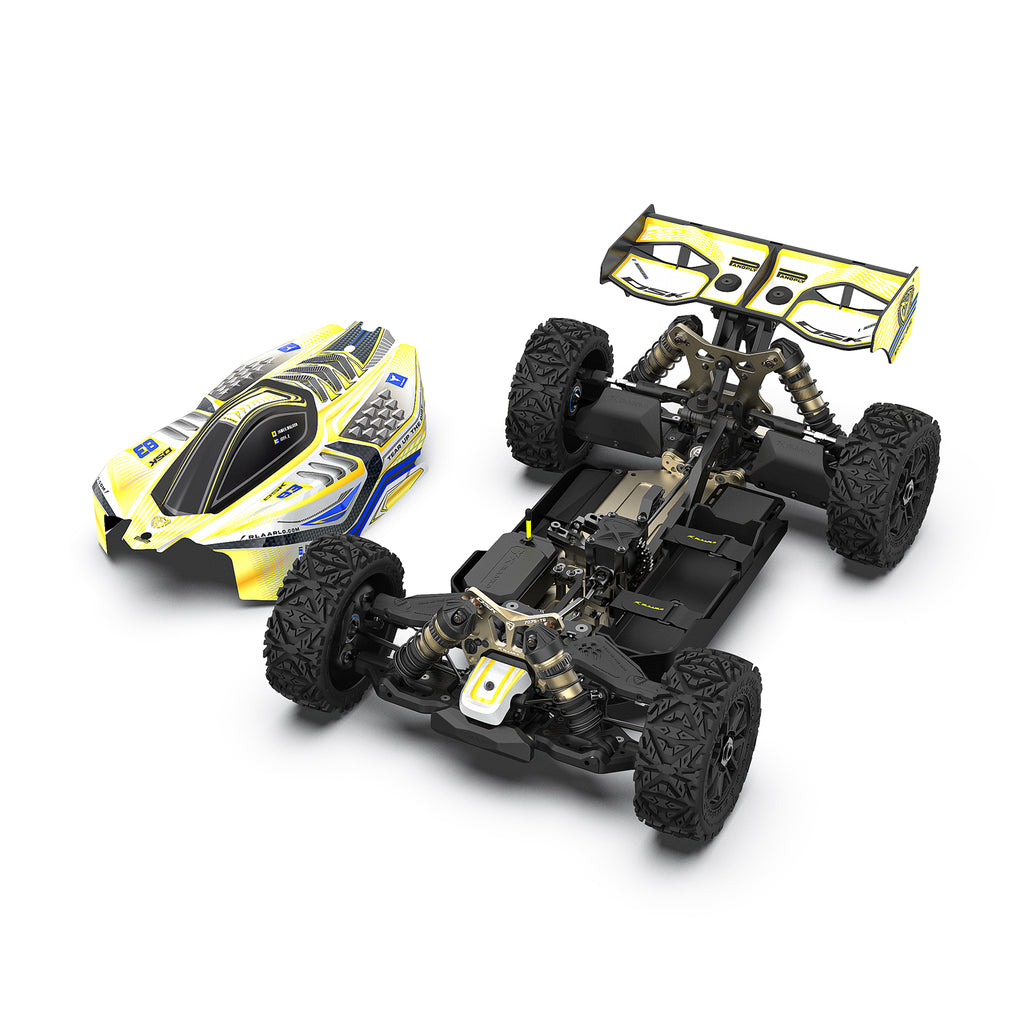

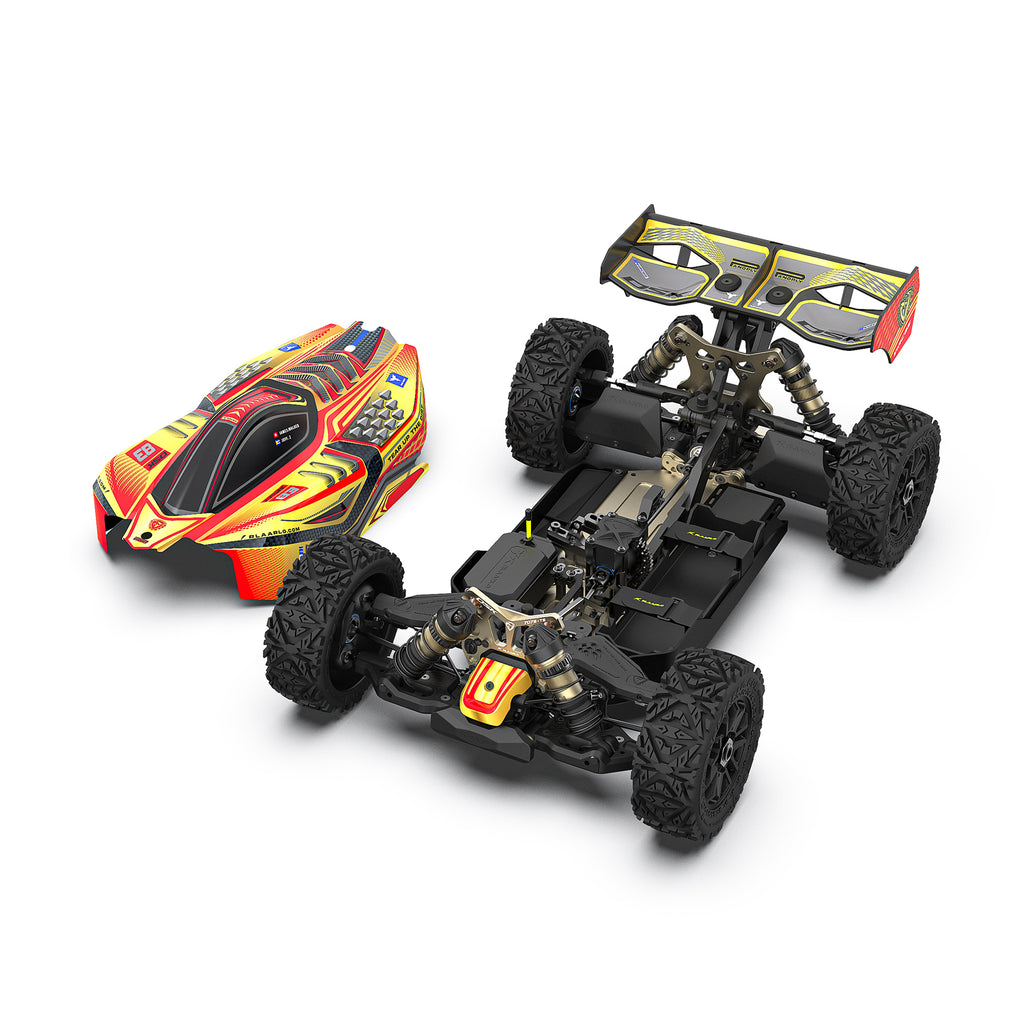

The Rlaarlo Dragon Scale Knight DSK Roller is built for drivers who want a serious 1/8 scale buggy platform without being locked into factory electronics. Supplied as a rolling chassis, it gives you the freedom to choose your own motor, ESC, servo, radio gear and battery setup.
Designed for speed, strength and tuning flexibility, the DSK uses a 4WD shaft-driven layout with front, centre and rear differentials to deliver smooth, controlled power across loose dirt, gravel, grass and track surfaces. The 3mm 7075-T6 aluminium chassis gives the buggy a strong, planted feel while keeping the platform responsive and precise.
The DSK also makes setup and maintenance much easier. Quick-release gearbox access and a removable centre differential allow faster servicing, gear changes and diff oil tuning, helping you spend less time on the bench and more time driving.
With adjustable suspension geometry, oil-filled shocks, anti-roll bars and multiple setup options, this roller is ideal for experienced RC users who want to build a high-performance buggy around their preferred electronics package.
The DSK rolling chassis is available in either Blue or Red liveries - choose your colour on the dropdown choice.
Key Features
- 1/8 Scale 4WD Off-Road Buggy Roller
- Supplied without electronics
- 4WD shaft-driven drivetrain
- Front, centre and rear gear differentials
- 3mm 7075-T6 aluminium chassis
- 5mm 7075-T6 aluminium shock towers
- Oil-filled adjustable shocks
- Front and rear anti-roll bars
- Quick-release gearbox design
- Removable centre differential
- Adjustable steering and suspension geometry
- Universal driveshafts
- 17mm wheel hexes
- Suitable for 2S-6S brushless setups
- Ideal for custom motor, ESC and servo builds
What's Required
This version of the DSK is provided as a pre-built rolling chassis (without any electronics installed). You will need the following components to complete your build:
- Brushless Motor (recommended 4274 size)
- ESC (min 120A)
- Steering Servo (min 30kg rated)
- Radio System
- LiPo Battery (3-6S)
- Battery Charger
- Tools to assemble
Specification
- Scale: 1/8
- Drive System: 4WD Shaft Driven
- Vehicle Type: Competition Buggy
- Length: 495-500mm
- Height: 180mm
- Wheelbase: 326-330mm
- Front Track Width: 285mm
- Rear Track Width: 285.5mm
Drivetrain
- 3 Gear Differentials (Front, Centre & Rear)
- Internal Drive Ratio: 2.71:1
- Overall Drive Ratio: 9.7:1
- MOD 1.0 Gearing
- 46T Spur Gear
- 17T Motor Pinion
- Precision CNC Machined Hardened Steel Bevel & Pinion Gears
- Hardened 40CrMo Steel Spur Gear
Chassis & Construction
- 3mm 7075-T6 Hard Anodised Aircraft Grade Aluminium Chassis
- 5mm 7075-T6 Hard Anodised Aluminium Front Shock Tower
- 5mm 7075-T6 Hard Anodised Aluminium Rear Shock Tower
- 1.5mm Heavy Duty Polycarbonate Bodyshell
Suspension
- Oil Filled Composite Coil-Over Shocks
- Front Shock Length: 107mm
- Rear Shock Length: 129mm
Wheels & Tyres
- 17mm Hex Wheel Adapters
- Wheel Diameter: 74mm
- Wheel Width: 42mm
- Tyre Diameter: 115mm
- Tyre Width: 45mm
Battery & Electronics
- Battery Compartment Size: 158 x 44mm
- Alternative Battery Compartment Size: 140 x 48mm
Bearings
- Full Rubber Shielded Ball Bearings Throughout
