Product Description

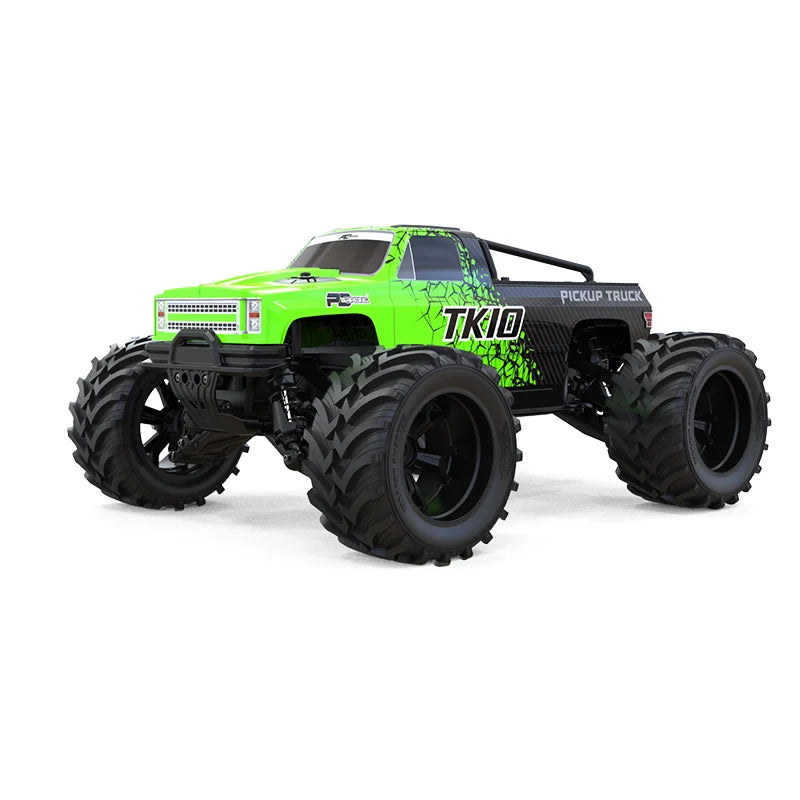

The PD Racing TK10 V3 EXB Green edition is the latest Version 3 evolution of the 1:10th scale TK10 brushless monster truck. Built as a fast and tough 4WD bashing platform, the V3 receives a number of worthwhile upgrades over the previous version including longer 130mm oil-filled shock absorbers, revised front and rear body supports, stronger external bumpers, upgraded tyres and improved drive shafts. With the recommended 4S LiPo setup the TK10 V3 is capable of speeds up to 88km/h.
Power comes from a large 3670 size 1950KV brushless motor paired with a 120amp brushless electronic speed controller. The ESC incorporates a gyro system to help keep the truck stable under hard acceleration and across loose surfaces, whilst also supporting the use of an external receiver. Steering is handled by a powerful 35KG coreless servo for fast and positive control of the large front wheels.
The Version 3 chassis has been revised to make better use of its power off road. The oil-filled shock absorbers have been extended to 130mm, 10mm longer than the previous design, increasing suspension travel and improving damping over rough terrain. The front and rear body support sections have also been lengthened whilst the redesigned external bumpers offer additional protection during harder impacts. Nylon body-post gaskets have been added to improve body mounting stability and help reduce damage caused by vibration and repeated impacts.
Large 145mm herringbone-pattern tyres provide plenty of ground clearance and have been updated with a revised rubber compound for improved grip and wear resistance. The drivetrain has also received upgraded drive shaft material, with 6061-T6 aluminium alloy used in the drive shaft specification. Combined with its 4WD transmission and 7.5cm of ground clearance, the TK10 V3 is designed for grass, dirt, gravel and general off-road bashing.
Key Features
- Latest PD Racing TK10 Version 3 EXB
- 1:10th scale 4WD brushless monster truck
- Capable of speeds up to 88km/h
- Powerful 3670 1950KV brushless motor
- 120amp brushless ESC (EC5 connector)
- Integrated gyro stability system
- ESC compatible with an external receiver
- Powerful 35KG coreless steering servo
- 2.4GHz 4-channel radio system
- Approximately 100 metre radio range
- Upgraded 130mm oil-filled shock absorbers
- Increased suspension travel compared with the previous TK10
- Revised extended front and rear body supports
- Stronger external front and rear bumpers
- Upgraded drive shaft material
- 6061-T6 aluminium alloy drive shaft specification
- Large 145mm diameter off-road tyres
- Upgraded herringbone tyre pattern for improved grip
- Tough polycarbonate body shell
Size and weight
- 1:10th scale
- 47cm in length
- 39cm in width
- 24cm in height
- 32.5cm wheelbase
- 7.5cm ground clearance
What’s in the box
- PD Racing TK10 V3 EXB 1/10th Scale Brushless Monster Truck (Green)
- 2.4GHz Radio Controller
- Hex wrench set
- User Manual
-
OPTIONAL 3S 11.1v or 4S 14.8v battery and charger
Note: The 3S battery option come with a USB charger. The 4S battery option come with a GT Power SD4 20W LCD mains charger.
Please note, you will need to supply 4 AA batteries for the Remote Controller.
