Description

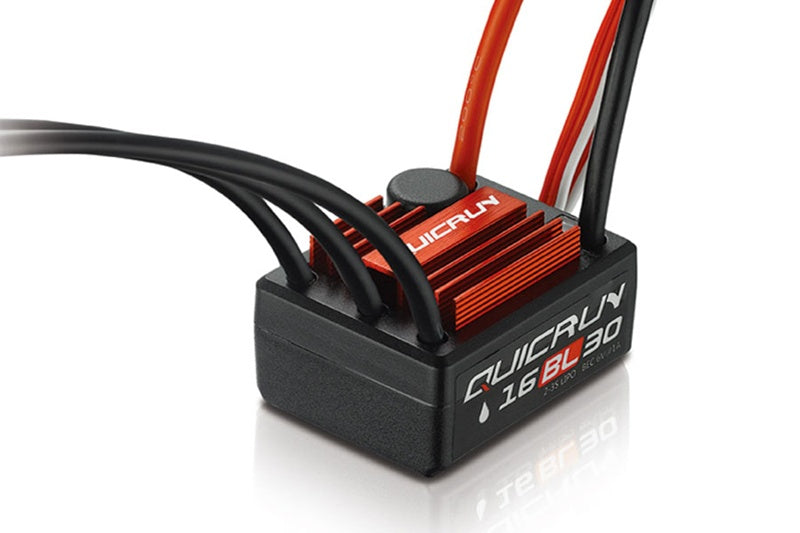

Introducing the Hobbywing QuicRun 16BL30 G2 Waterproof brushless speed controller. Choose either a XT60 or Deans T plug connector.
Intelligent Freewheeling for Lower Heat and Enhanced Performance
The ESC features intelligent freewheeling technology, delivering higher drive efficiency, lower operating temperatures, improved stability, and greater reliability.
Compact Size for Easier Installation and Flexible Layout
Compared to the previous generation 16BL30 ESC, the G2 ESC is significantly smaller: 8.3% shorter in length, 7.1% narrower, and 16.7% lower in height. This design is compact and makes installation easier and allows for cleaner wiring on the chassis.
BEC Upgrade Compared to the G1 ESC
The BEC’s continuous current has been upgraded from 1A to 2A.
A peak current of up to 4A
The output voltage can be switched between 6V and 7.4V.
Easily powering high-torque and high-voltage servos. This provides faster response and more precise control.
High Protection Rating
IP67-rated protection allows it to easily handle harsh environments such as rain, sand, and muddy roads, ensuring reliable performance without environmental limitations.
Note: The IP67 protection rating described above applies under normal usage conditions, providing splash resistance, water resistance, and dust resistance, as tested under controlled laboratory conditions. These protective features are not permanent, and protection performance may degrade over time due to regular wear and aging. Do not submerge the product in water for extended periods, as this may cause damage.
Multiple Programming Methods
Supports three programming methods: LCD Program Box Pro, LED Program Box, and SET button, allowing users to conveniently select their preferred programming method for parameter adjustments.
Exceptional Value for Money
Specifically designed for entry-level users, with HOBBYWING’s exceptional quality. Easy to operate and beginner-friendly, with no complex setup required.
Perfect Match for QuicRun 2030 G2/2435 G3 Motors
The ESC offers excellent compatibility when paired with QuicRun 2030 G2/2435 G3 motors, delivering smoother control.
Wide Compatibility
The power system is suitable for both 1/16th & 1/18th scale hobby vehicles.
Specifications
Type
- Scale - 1/16th, 1/18th
- Brushed/Brushless - BL
- Sensored/Sensorless - SL
- Waterproof - Yes
Specifications
- Cont./Peak Current - 30A/100A
- Input Voltage - 2-3S LiPo
- BEC Output - 6V/7.4V@2A
Cables and Plugs
- Power Cord - Black-16AWG-75mm*1,Red-16AWG-75mm*1
- Output Line - Black-16AWG-60mm*3
- Power Plug - XT60
- Output Plug - 3.5MM gold female plug
ESC Programing via
- SET Button on ESC - Supported
- LED Program Box - Supported
- LCD G2 Program Box - Supported
- OTA Programmer - Not Supported
- Program Port - Shared with Throttle Wire
Data Recording
- Extreme value records - Not Supported
- Real-time Data - Not Supported
- Historical Data (line graph) - Not Supported
Firmware
- Firmware Upgrade - Not Supported
Size & Weight
- Size - 33.4*26.8*15.1mm
- Weight - 38.5g( Included wires & connectors)
Applications
- Supported motor types - Sensorless brushless motor, sensored brushless motor (only works in sensorless mode)
- Applicable models - 1/16th、1/18th On-Road & Off-Road
- Applicable motor - QUICRUN 2435 G2
