Description
Easy Operation

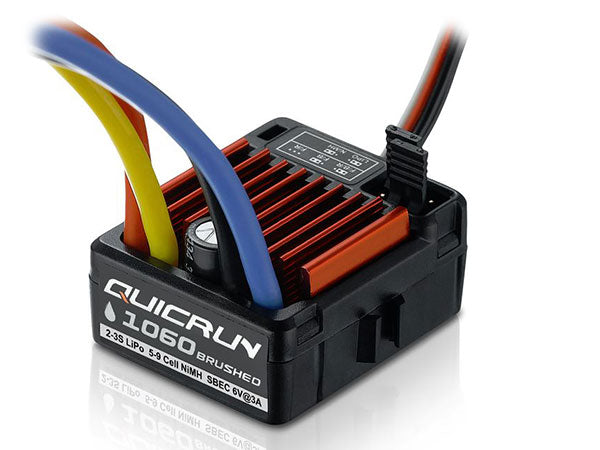

This ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation.
Applicable to All Weather Conditions
The waterproof and dust-proof design allows the QUICRUN WP-1060 Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.
High Reliability & Durability
Reliable hardware combined with advanced software technology allows the QUICRUN WP 1060 Brushed to not only provide high power output but also overload protection of the ESC circuit.
Easy to Use

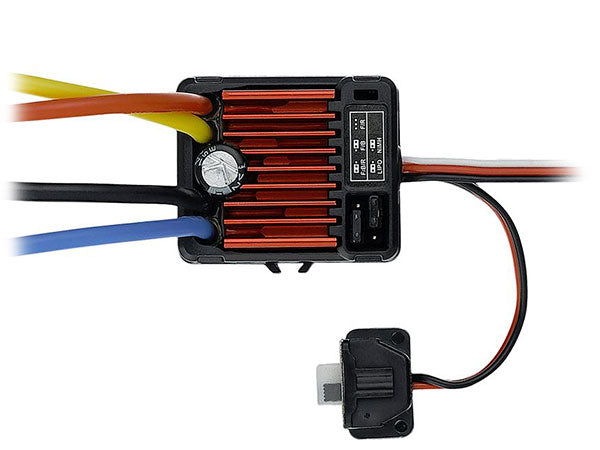

This ESC features auto throttle calibration and parameter setting via jump caps is easy-to-use, especially applicable to new beginners.
Wide Application
This ESC is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers and tanks.
- Waterproof
- Cont./Peak Current - 60A/360A
- Input - 2-3S LiPo/5-9 Cells NiMH
- BEC Output - Switch Mode:6V/3A
- Motor Limit - 2S Lipo or 6 NiMH - 540 or 550 Size Motor: 12T or RPM 30000 - 7.2V --- 3S Lipo or 9 NiMH - 540 or 550 Size Motor: 18T or RPM 20000 - 7.2V
- Input Wires - Red-16AWG-100mm/Black-16AWG-100mm
- Output Wires - Blue-16AWG-100mm/Yellow-16AWG-100mm

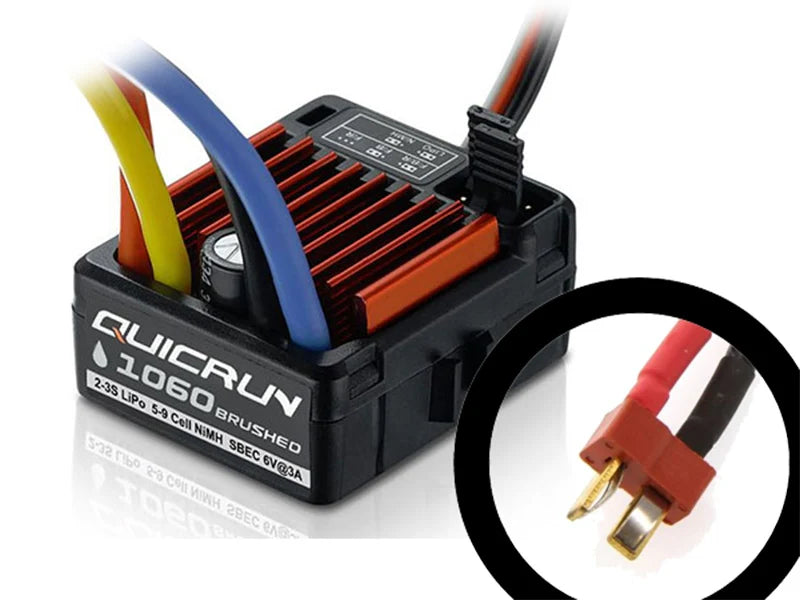

- Input Connectors - Deans T Plug connector
- Output Connectors - 4.0 Bullet Connectors (Female)
- Size - 36.5x32.0x18.0mm
- Weight - 39g
- Motors - Brushed Motors
Suitable for: 1/10 Touring Car, Buggy, Short Course, Truck, Monster, Truggy, Rock Crawler and Tank.
